ZONCN VFD 380v 40hp 50hp 30kw 37kw Inverters For Fan And Pump

  • 1
  • 2
  • 3

Brand Name : ZONCN

Model Number : Z2400-30G/37P

Certification : CE, KC

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T, Paypal

Supply Ability : 100,000 pcs/month

Delivery Time : 7-30 days

Packaging Details : inside: box; outside: carton

Type : AC inverters

Brand : ZONCN

Voltage : 3PH 380V-480V

Input frequency : 50Hz / 60Hz

Model : Z2400-30G/37P

Rated Power : 30kw/40HP

PM motor : Support (Z2000T series)

Output Frequency : 0-600Hz

0-10V/0-20mA : have

Analog input/output : Yes

Contact Now

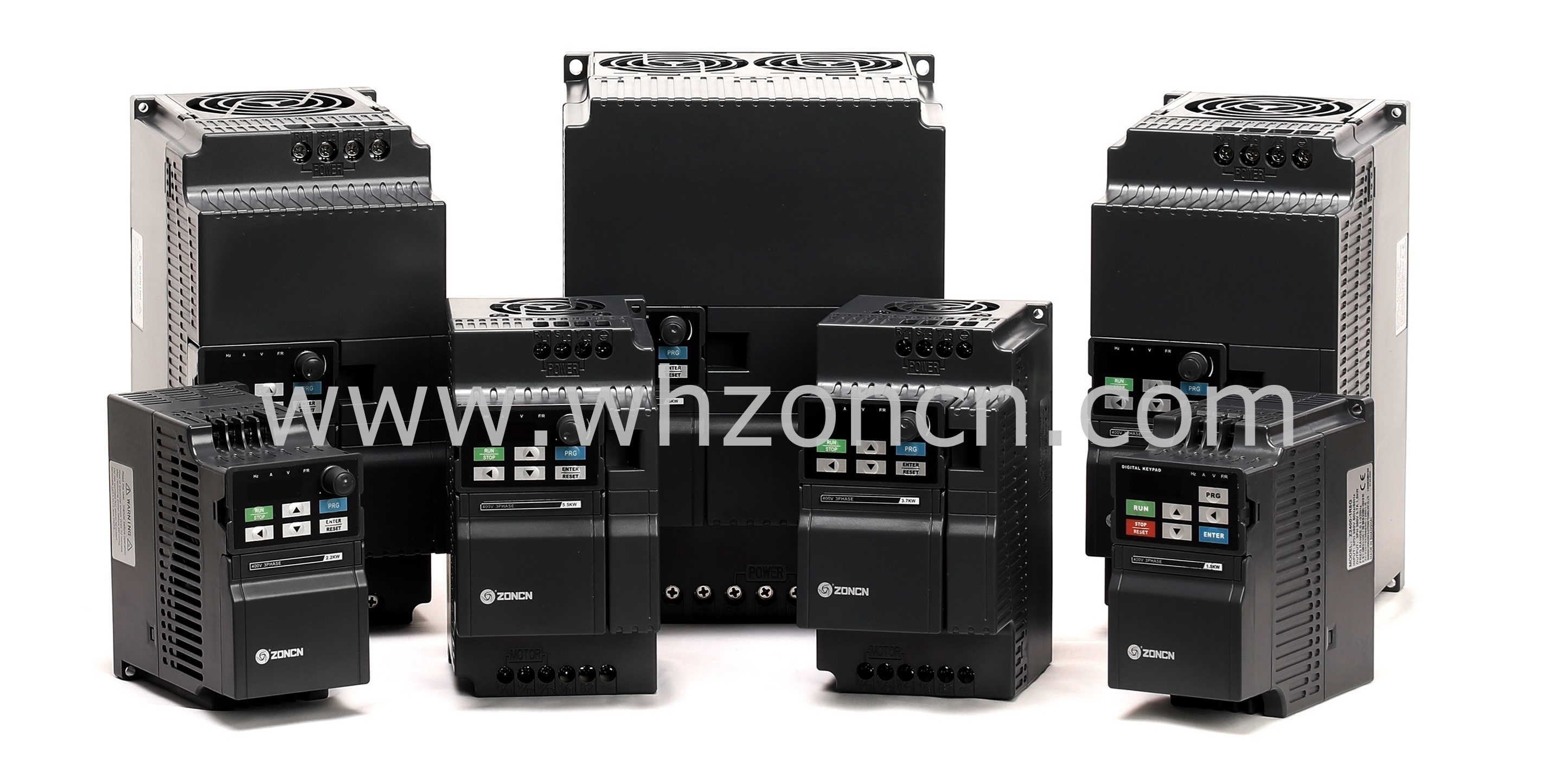

ZONCN Z2000 Series General Purpose Vector Control Inverter

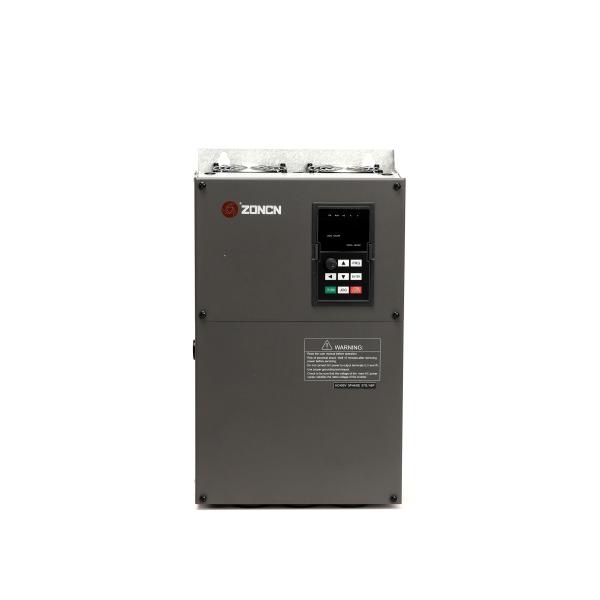

ZONCN VFD 380v 40hp 50hp 30kw 37kw Inverters For Fan And Pump

Product description

Item Z2000
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Specification

Specification
Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　


*Note: If you have any special requirements, pls feel free to contact us directly, we can customize for you.

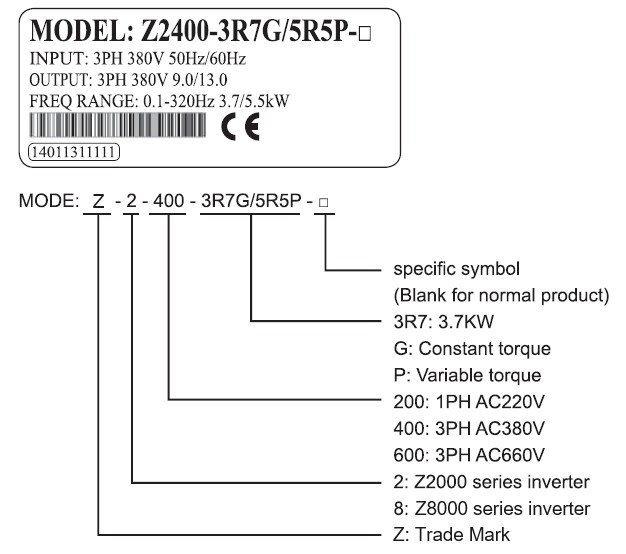

Nameplate Description

ZONCN VFD 380v 40hp 50hp 30kw 37kw Inverters For Fan And Pump

Company Profile

ZONCN VFD 380v 40hp 50hp 30kw 37kw Inverters For Fan And Pump

Wuhu ZONCN Automation Equipment Co., Ltd is one of a leading manufacturer which specialized in inverter in China, the headquarters is located in Shanghai, we have set up another factory in Wuhu city. ZONCN focuses on the research and development, production sales and the service of inverters. ZONCN has 6 main general series of VFD and there are more than 100 professional inverters, which are widely in various applications. We have passed ISO9001 Quality Management System Certificate and the CE Certificate in EU, and the KC certificate in South Korea.

Application

ZONCN VFD 380v 40hp 50hp 30kw 37kw Inverters For Fan And Pump
