40HP VFD Drives For PM Screw Air Compressor 37kw ZONCN Inverter
ZONCN NZ200 Series Inverter Features:
Control Modes:
The NZ200 series is an economical vector inverter that supports both open-loop vector control and V/F control. This dual-mode functionality provides flexibility and precision, making it suitable for a wide range of motor control applications.
Overload Capacity:
The inverter boasts a strong overload capability, capable of handling 150% of the rated current for 60 seconds and 180% for 3 seconds. This ensures reliable performance even under demanding conditions, making it a robust choice for industrial use.
Performance and Applications:
With its economical vector control and superior performance, the NZ200 series inverter is widely used across various industrial fields. It is particularly used for compressor applications, which is the first choice for air compressor supplier.
Design:
The inverter features a simple structure and compact design, which not only saves space but also simplifies installation. Its user-friendly design ensures quick and hassle-free setup.
Torque Output:
The NZ200 series inverter delivers high torque output, ensuring smooth motor start-up even under heavy loads. This capability is crucial for applications that require consistent and reliable operation from the start.
Advanced Features:
The inverter includes advanced functionalities such as momentary power loss ride-through and fast current limiting. These features help reduce the frequency of fault alarms, enhancing operational stability and reliability.
Protection Functions:
Comprehensive protection mechanisms are integrated into the inverter, including output phase loss protection, overcurrent, overvoltage, overload, and overheating protection. These safeguards ensure the durability and safety of the system.
PMSM Support:
The NZ200 series inverter supports permanent magnet synchronous motor (PMSM) control, specifically compatible with the NZ200T series.
Power Range:
The inverter covers a broad power range from 0.4 kW to 630 kW, making it suitable for both small-scale operations and heavy-duty industrial applications.
Combining affordability, robust performance, and advanced features, the ZONCN NZ200 series inverteris a practical and efficient solution for motor control needs, particularly in demanding industrial environments.
Specification
| | Input Voltage (V) | Rated output power ( KW) | Rated input current(A) | Rated output current (A) | Motor power ( KW) |
| NZ200-0R4G-2 | | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ200-0R75G-2 | 0.75 | 7.2 | 5 | 0.75 |
| NZ200-1R5G-2 | 1.5 | 10 | 7 | 1.5 |
| NZ200-2R2G-2 | 2.2 | 16 | 11 | 2.2 |
| NZ200-3R7G-2 | 3.7 | 17 | 16.5 | 3.7 |
| NZ200-0R4G-4 | | 0.4 | 3.4 | 1.2 | 0.4 |
| NZ200-0R75G-4 | 0.75 | 3.8 | 2.5 | 0.75 |
| NZ200-1R5G-4 | 1.5 | 5 | 3.7 | 1.5 |
| NZ200-2R2G-4 | 2.2 | 5.8 | 5 | 2.2 |
| NZ200-3R7G/5R5P-4 | 3.7 | 10.7 | 9 | 3.7 |
| NZ200-5R5G/75R5P-4 | 5.5 | 14.6 | 13 | 5.5 |
| NZ200-7R5G/11P-4 | 7.5 | 20 | 17 | 7.5 |
| NZ200-11G/15P-4 | 11 | 26 | 25 | 11 |
| NZ200-15G/18.5P-4 | 15 | 35 | 32 | 15 |
| NZ200-18.5G/22P-4 | 18.5 | 38 | 37 | 18.5 |
| NZ200-22G/30P-4 | 22 | 46 | 45 | 22 |
| NZ200-30G/37P-4 | 30 | 62 | 60 | 30 |
| NZ200-37G/45P-4 | 37 | 76 | 75 | 37 |
| NZ200-45G/55P-4 | 45 | 90 | 90 | 45 |
| NZ200-55G-4 | 55 | 105 | 110 | 55 |
| NZ200-75G/90P-4 | 75 | 140 | 150 | 75 |
| NZ200-90G/110P-4 | 90 | 160 | 176 | 90 |
| NZ200-110G/132P-4 | 110 | 210 | 210 | 110 |
| NZ200-132G/160P-4 | 132 | 240 | 253 | 132 |
| ... | ... | ... | ... | ... |
| NZ200-450G/500P-4 | 450 | 790 | 790 | 450 |
ZONCN NZ200 Applications

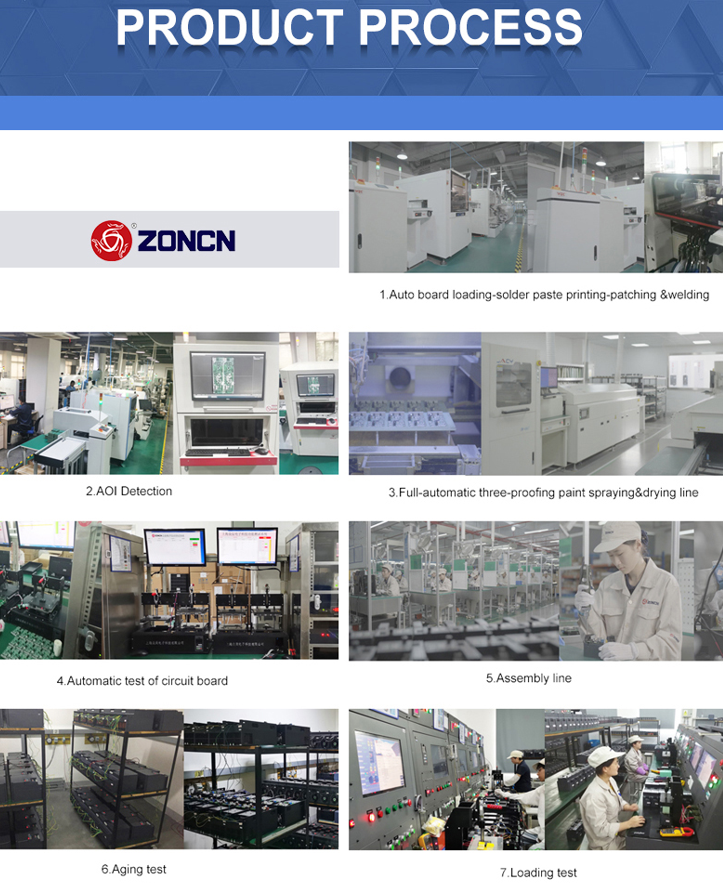

Production Ability
